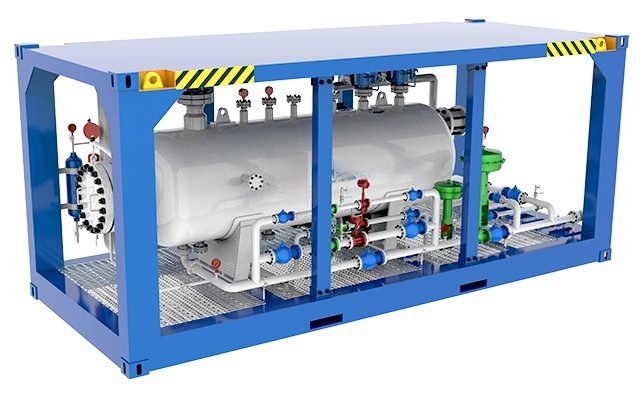

1440 PSI Test Separator
Samarth Engineers 1440 PSI Test Separator is designed for surface well test and flowback operations, and consists of several important valves and instruments. Test Separator for 1440 PSI pressure rating, separates well fluids effectively to three or four phases, gas-liquid-liquid or gas-liquid-liquid-sold.
1440 PSI Test Separator is considered as the most applied separator for oilfield operations, allowing oilfield service company to perform service fast and effectively. 1440 PSI Test Separator is applicable both in onshore and offshore applications. Samarth Engineers can supply separator skid with compliance to DNV standard and special structure which is convenient to install separator on SWT trailer.
Test Separator Basic Parameters - 1400 PSI
| Design pressure | Vessel size | Liquid Capacity | Dimensions (L x W x H) |
|||
|---|---|---|---|---|---|---|
| PSI | Bar | inch x foot | cm | BPOD | ft | m |
| 1440 | 99 | 42x15 | 107x457 | 12000 | 20x7.5x9 | 6.1x2.3x2.7 |
| 1440 | 99 | 30x10 | 76x305 | 3500 | 15x6.5x8 | 4.6x2.0x2.5 |
| 1440 | 99 | 42x10 | 107x305 | 10000 | 15x7.5x9 | 4.6x2.3x2.7 |
| 1440 | 99 | 42x15 | 107x457 | 12000 | 20x7.5x9 | 6.1x2.3x2.7 |
| 1440 | 99 | 48x10 | 122x305 | 13000 | 15x8x9.5 | 4.6x2.5x2.9 |
| 1440 | 99 | 48x12 | 122x366 | 19000 | 17x8x9.5 | 5.2x2.5x2.9 |
| 1440 | 99 | 48x15 | 122x457 | 19000 | 20x8x9.5 | 6.1x2.5x2.9 |
Samarth Engineers can design test separators for following services:
- Sour service
- Standard Service
- Heavy oil
- Extremely cold environment temperature
Applicable Code & Standards:
- ASME VIII DIV 1
- API 12J
- API 6D
- API RP 520
- CE/PED
- NACE MR0175
- DNV 2.7-1
